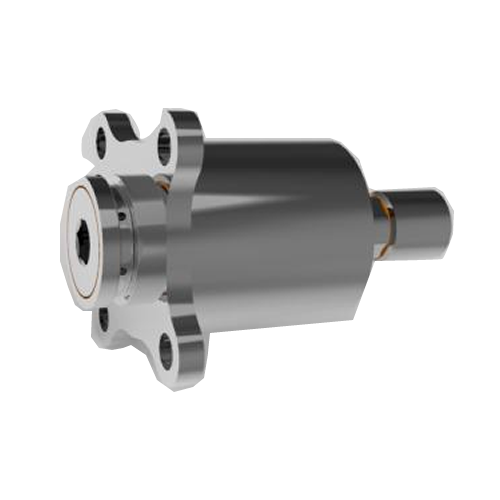

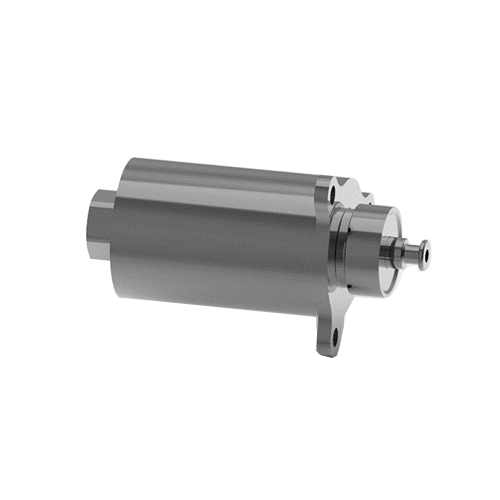

Micro, high-speed, 2-way solenoid valve, featuring high operating speed, long lifespan, and fast response time. It can be connected via flexible hoses, providing quick sealing and flexible assembly. This compact, high-reliability 2-way solenoid valve has a small operating volume, large flow rate, high pressure tolerance, and is compatible with various propellants.
Microflow High-Speed Solenoid Valve | Small Cartridge-Type Solenoid Valve | High Reliability Two-Way Solenoid Valve Model | ||||||||||||||||||||||||||||||||
Working Pressure | 0~0.8MPa | Working Pressure | 0~2.2MPa | Working Pressure | 0~2.2MPa | |||||||||||||||||||||||||||||
Operating Speed | Up to 1000Hz | Operating Temperature | 0℃ to 80℃ | Operating Temperature | 0℃ to 100℃ | |||||||||||||||||||||||||||||
Response Speed | 0.5ms | Response Speed | ≤10ms | Response Speed | ≤10ms | |||||||||||||||||||||||||||||
Weight | ≤5g | Weight | ≤100g | Weight | ≤100g | |||||||||||||||||||||||||||||
Power Consumption | 0.3W | Power Consumption | ≤6W | Power Consumption | ≤5W | |||||||||||||||||||||||||||||
Switching Frequency | 50,000,000 times | Switching Frequency | ≥100,000 times | Switching Frequency | ≥100,000 times |
