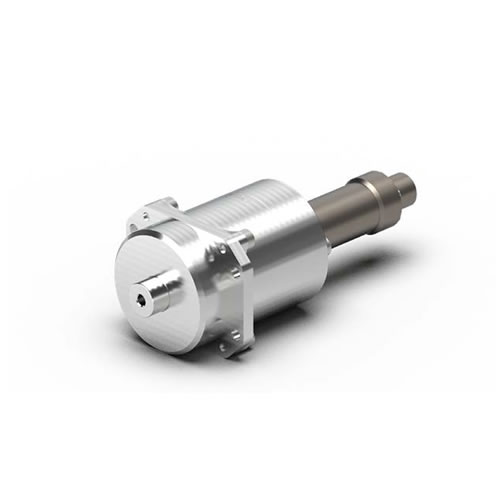

Long-stroke Pin Puller
The long-stroke pin puller uses shape memory alloys as the trigger and a spring-driven mechanism for pin extraction. The pin is pulled out before use, and when powered, the pin contracts. It features a simple and reliable structure with low unlocking impact, making it an ideal replacement for pyrotechnic pin pullers.
Description
Key Features:
1. Low Power Consumption: Compatible with pyrotechnic ignition signals.
2. Fast Response: 50ms response time at 10A current at room temperature.
3. Good Environmental Adaptability: Not sensitive to temperature, humidity, vacuum, or static electricity.
4. Dual Shape Memory Alloy Drive: Dual-point and dual-line power supply with redundant mechanical and electrical designs.
5. Reusable: Can be repeatedly used and verified with high reliability.
6. Low Unlocking Impact.
7. Ease of Use: No special positions, tools, or operations required; screws are directly installed.
Technical Specifications:
| Weights | 42g | 92g | |||||||||||||||||||||||
| Sizes | 63.5 x 36 x 20mm3 | 78.5×37×29mm3 | |||||||||||||||||||||||
| Pulling force | 200N at the beginning, 40N at the end | 400N at the beginning, 275N at the end | |||||||||||||||||||||||
| Distance travelled | 4.5mm | 5mm | |||||||||||||||||||||||
| Response time | <150ms (-80°C), ≈50ms (25°C), current 10A | ||||||||||||||||||||||||
| Dependability | Not less than 0.999999999 (confidence level γ = 0.9) | ||||||||||||||||||||||||
| Resistive | 1.1±0.15Ω | ||||||||||||||||||||||||
| Amps | ≥1.5A | ||||||||||||||||||||||||
| Power wastage | 20J (-80°C), 10J at room temperature | ||||||||||||||||||||||||
| Power-on time | Based on actual supply voltage and power consumption | ||||||||||||||||||||||||
| Operating temperature | -80℃ ～ +70℃, no action below 70℃ (90℃ optional) | ||||||||||||||||||||||||
