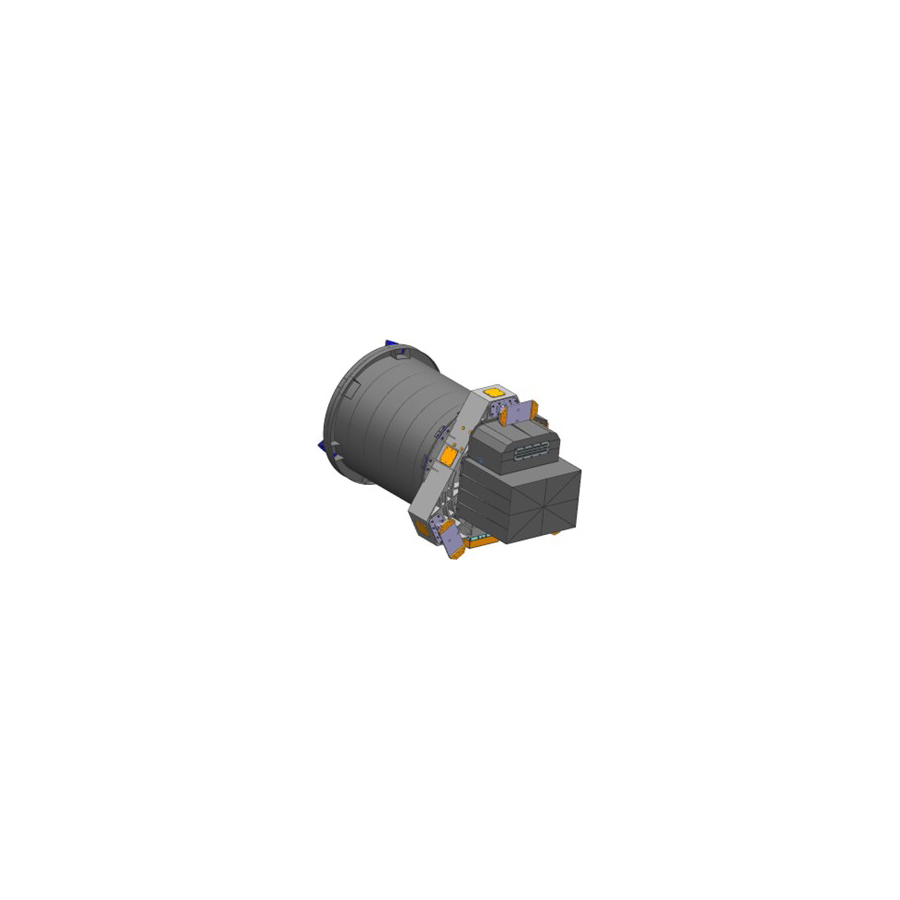

0.5m Optical multispectral camera
This product is a large-pixel, high imaging quality space optical camera with the advantages of high transmission and high signal-to-noise ratio. It can be applied to satellite-borne products and high-performance remote sensing detailed investigation applications.
Description
- Mass123kg
- Typical power consumption305W
- Designed lifespan5 year
- Imaging modeTDI
- Resolution (Full color)0.5m@500km
- Resolution (Multi-spectral)1m@500km
- Swath15km@500km
- SpectrumFull color：450~700nm；
blue：430~520nm；
green：520~610nm；
red：610~690nm；
near-infrared：770~900nm - Focal length8800
- Aperture700mm
- FoV1.7°
- Element size (Full color)8.75μm
- Element size (Multi-spectral)17.5μm
- Bits10bit
- SNR40dB
- Radiometric calibrationabsolute＜7%
relative＜3% - Imaging time per orbit600s
