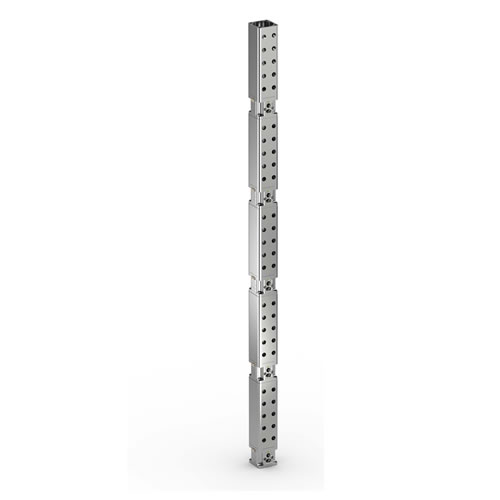

Stacked Multi-satellite Release Modular(ordered release)
Description
1. Non-pyrotechnic, low impact;
2. Small size, light weight and high connection stiffness;
3. Reusable, repeatable validation and high reliability;
4. Fast unlocking response, 50ms response time at room temperature for 10A current;
5. Separation springs can be built in to provide satellite initial separation speeds;
6. Each star can be released in a controlled and orderly manner;
7. The main bearing preload screws are available in M10, M12, M16, M20, M24 and M30, which can be adapted to the release of satellites stacked in different weight classes;
8. Adequate strength margin, supporting flexible configuration from 2 to 30 layers. The weight of the structure can be further reduced by reducing the specification of the separation seat used for the satellite in the upper layer.
9. Modular design, with simple threaded holes for both satellite and carrier interfaces, for simple and carrier interfaces, for simple and reliable connections.
