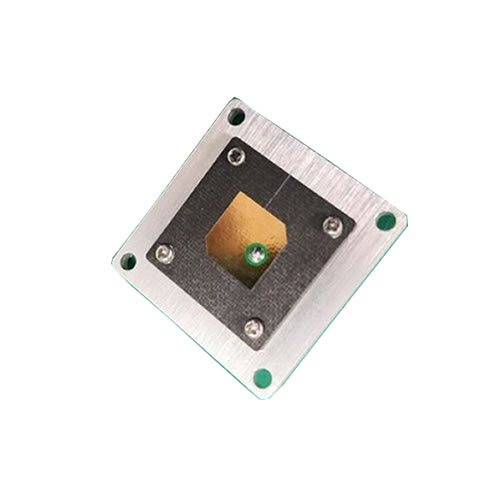

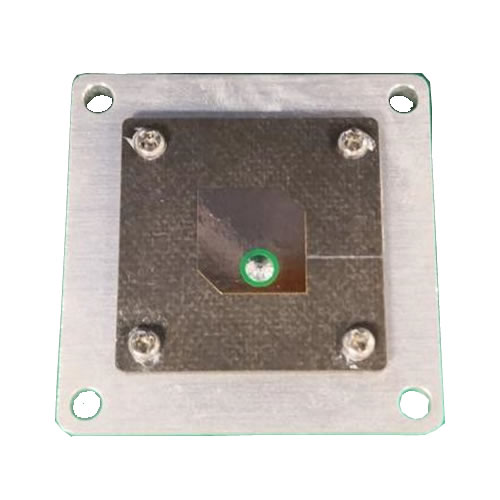

The antenna uses a stacked microstrip antenna design and achieves high gain through a multilayer board coupled feeding array. It features advantages such as small size, light weight, and low cost, and is widely used in the field of micro satellites, CubeSats for control, and data transmission.
Operating Frequency | X Band | |||||||||||||||||
Antenna Gain | Control Antenna≥-2dBi@±65° Data Transmission Antenna≥15dBi | |||||||||||||||||
Antenna Size | 85mm×85mm×10mm (Data Transmission) Antenna40mm×40mm×10mm (Control Antenna) | |||||||||||||||||
Antenna Weight | Data Transmission Antenna 150g Control Antenna40g |
