1.5m resolution

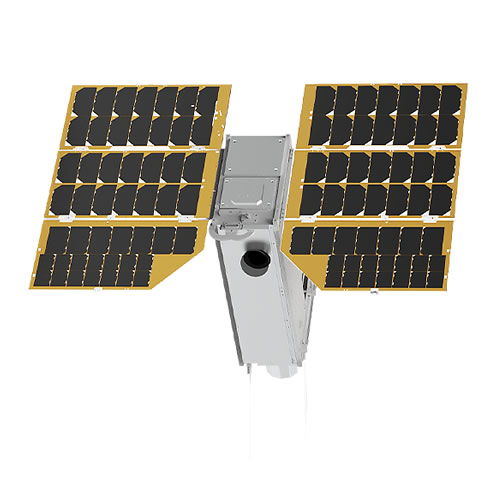

The satellite's payload is equipped with a high-resolution optical camera. Optical satellites are capable of providing high-resolution optical remote sensing services and play an important role in smart city construction and agricultural monitoring.

Description


Resolution1.5m
Weight<35kg
Lifespan3 years
Attitude control method3-axis   stabilization (zero momentum/attitude maneuvering/sideslip)
Total Satellite power100W
Attitude Control PrecisionPointing   accuracy≤0.01°;Stability ≤ 0.01°
Transmission Speed>100Mbps
Payload Mass Capacity15-16KG
Payload Volume Capacity100 x 200 x 200 mm³
Available Power for Payload100W
Available Voltage for Payload3.3V / 5V / 12V / 28V
Available Interfaces for PayloadCAN   / RS422 / LVDS / Camera-Link / IIC / SPI
Telemetry and Command Communication Rate16Kbps
